Shutter Module
- Item No. : 4101; 4102

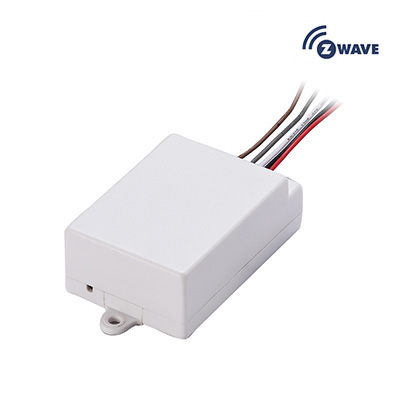

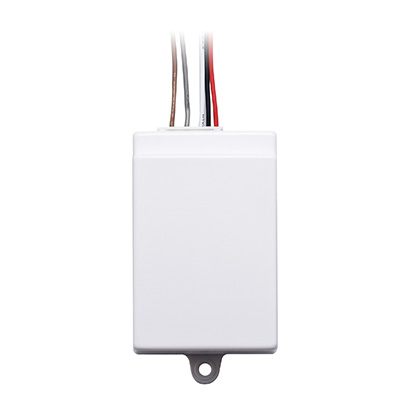

- Shutter Module
- Protocol : Z-Wave(ZW4101_ZW4102)
(ZW4101_ZW4102)will send open/close signal to the appliance that attached to this module by receiving Z-Wave™ signal from controller or manually switch. The special design the curtain not only can be opened and closed but also can be stopped under the Multilevel Switch command on the controller. This module also acts as repeater (supporting FLiRS devices).
ZW4101/ZW4102 (Z-Wave)：
| * Up/Down/STOP USE |
| * Operating Voltage: DC 12V-20V |
| * Wired & Terminal Type Available |
| * Max. Loading: 10 AMP |
ZW4101/ZW4102 (Z-Wave)：
|
Communication protocol |
Z-WAVE |
|
Frequency |
EU,US,JP,KR,IL,IN,BR,RU |
|
Power Supply |
DC 12V-20V |
|
Operating Range. |
Up to 100 feet line of sight |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Max. Loading |
10 AMP |
|
Dimensions |
85x48x30mm |
