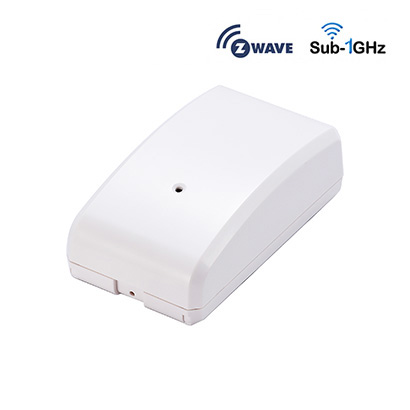

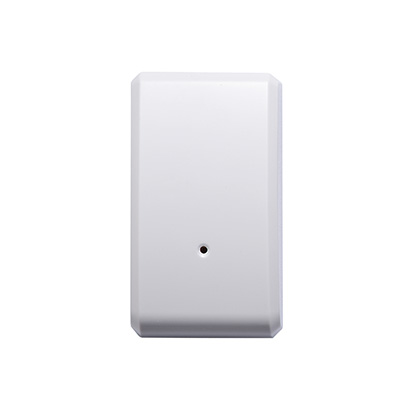

Shock Sensor
- Item No. : 5101
- Shock Sensor
- Protocol : Z-Wave(ZS5101-8) ; SUB-1G(HS5101)
(ZS5101-8) detects the vibrations made by an intruder trying to break a window or door, and also detect tamper situations, it will send Z-Wave signal when vibrations or tamper situations are detected. When the device is secure included into Z-Wave network, above the communication will be encrypted.
<<< Z-Wave Long Range Distance: 2,600 ft. >>>
(HS5101) detects the vibrations made by an intruder trying to break a window or door, and also detect tamper situations, it will send triggered signal when vibrations or tamper situations are detected. With optional external reed switch function, this sensor will provide a more completed protection.
ZS5101-8 (Z-Wave)：
| * Non-Touch Vibration Design for Longer Lifetime |
| * Adjustable Sensitivity |
| * Tamper Switch |
| * Battery Detection |
| * LED Status Indicator |
| * Battery Life: 2 Years (Battery life varies with usage and environmental conditions.) |
HS5101 (SUB-1G)：
| * Non-Touch Vibration Design for Longer Lifetime |
| * Adjustable Sensitivity |
| * Tamper Switch |
| * Battery Detection |
| * LED Status Indicator |
| * Battery Life: 10 Years (Battery life varies with usage and environmental conditions.) |
ZS5101-8 (Z-Wave)：
|
Communication Protocol |
Z-Wave |
|
Frequency |
US, US_LR, EU, EU_LR, JP, KR, ANZ, IN, IL, RU |
|
Current |
15uA |
|
Voltage |
DC3V |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1*CR123A Battery |
|
Installation |
Double Sided Foam Tape/Screwed |
|
Dimensions |
74*42*28mm |
HS5105 (SUB-1G) :
|
Communication Protocol |
433MHz |
|
Current |
15uA |
|
Voltage |
DC3V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1*CR123A Battery |
|
Installation |
Double Sided Foam Tape/Screwed |
|
Dimensions |
74*42*28mm |
