Door / Window Sensor
- Item No. : 2102

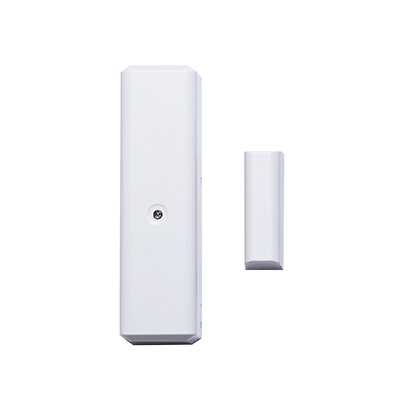

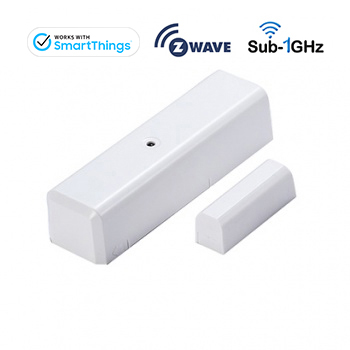

- Door / Window Sensor
- *** Z-Wave 800series Available ***
Protocol : Z-Wave (ZD2102-8) ; SUB-1G (HD2102)
Monitors door/window and send signal when door or window is opened and closed.
<<< Z-Wave Long Range Distance: 2,800 ft. >>>
*** Works with SmartThings ***
ZD2102-8 (Z-Wave 800series)：
| * Support S2 & SmartStart |
| * Reed Switch & Tamper Switch & External Tamper Switch |
| * LED indicator |
| * Compact Size |
| * Easy to Install and Use |
| * Battery Energy Detection & Low Battery Report |
| * Battery Life: 10 Years (Battery life varies with usage and environmental conditions.) |
HD2102 (SUB-1G)：
| * Reed Switch & Tamper Switch & External Tamper Switch |
| * LED indicator |
| * Compact Size |
| * Easy to Install and Use |
| * Battery Energy Detection & Low Battery Report |
| * Battery Life: 5 Years (Battery life varies with usage and environmental conditions.) |
ZD2102-8 (Z-Wave 800series)
|
Communication Protocol |
Z-Wave |
|
Frequency |
US, US_LR, EU, EU_LR, JP, KR, ANZ, IN, IL, RU |
|
Current |
Static current : <3uA |
|
Voltage |
DC3V |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1 * CR123A Battery |
|
Installation |
Double Sided Foam Tape |
|
Dimensions |
88 mm * 25 mm * 21 mm |
HD2102 (SUB-1G) :
|
Communication Protocol |
433MHz |
|
Current |
Static current:<4uA |
|
Voltage |
DC3V |
|
Operating Range |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1*CR123A Battery |
|
Installation |
Double Sided Foam Tape |
|
Dimensions |
88*25*21mm |
