- Item No. : 1601 (Battery) / 1602 (AC Type)

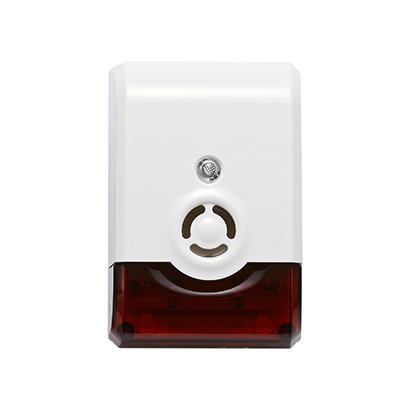

- Wireless Siren and Strobe
- Protocol :
Z-Wave (ZM1601-8/ZM1602-8)
SUB-1G (HM1601)
(ZM1601-8/ZM1602-8) will sound a loud siren and flash a strobe light when an alarm message or alert is received on any Z-Wave enabled network. When the device is secure included into Z-Wave network, above communication will be encrypted.
<<< Z-Wave Long Range Distance: 2,000 ft. >>>
*** Works with SmartThings (ZM1602-5) ***
(HM1601) is a siren with strobe light device for Vision’s HS 512/514 home security system, it will get activation commands from alarm system, the siren activates its sounder, activates its flash lights. As home security receiver for small home HS 410, HM 1601 can learn up to 2 remotes (TX-24) and up to 5 accessory devices, such as door sensor, motion sensor, shock sensor, smoke detector, deadbolt lock etc. Simply arm & strobe if any device was triggered, simply arm & disarm by remote control.
ZM1601-8 (Z-Wave)：
| * Siren for Battery Power |
| * Audible Alarm >105dB@1m |
| * LED Strobe Lighting |
| * LED Status Indicator |
| * Adjustable Audible and Visual Alarm |
| * Tamper Switch |
| * Battery Detection |
| * Battery Life: 3 Year (Battery life varies with usage and environmental conditions.) |
ZM1602-8 (Z-Wave):
|
* Support S2 & SmartStart |
|
* Tamper Switch |
|
* LED Status Indicator/ LED Strobe Lighting |
|
* Adjustable Audible and Visual Alarm |
|
* Audible Alarm >105dB@1m |
|
* Battery Energy Detection & Low Battery Report |
HM1601/HM1602 (SUB-1G)：
| * Siren for Battery Power |
| * Audible Alarm >105dB@1m |
| * LED Strobe Lighting |
| * LED Status Indicator |
| * Adjustable Audible and Visual Alarm |
| * Tamper Switch |
| * Battery Detection |
| * Battery Life: 1 Year (Battery life varies with usage and environmental conditions.) |
ZM1601-8 (Z-Wave)：
|
Communication Protocol |
Z-Wave |
|
Frequency |
US, US_LR, EU, EU_LR, JP, KR, ANZ, IN, IL, RU |
|
Current |
<50uA |
|
Voltage |
DC6V |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
4*AA Battery |
|
Installation |
Backet / Screwed |
|
Dimensions |
116*77*40mm |
ZM1602-8 (Z-Wave):
|
Communication Protocol |
Z-Wave |
|
Frequency |
US, US_LR, EU, EU_LR, JP, KR, ANZ, IN, IL, RU |
|
Voltage |
USB-A,5V |
|
Operating Temp. |
MIN:0℃, MAX:+45℃ |
|
Battery |
NiMH rechargeable battery |
|
Installation |
Bracket (Double Sided Foam Tape/ Screw) |
|
Dimensions |
116*77*40mm |
HM1601/HM1602 (SUB-1G):
|
Communication Protocol |
433MHz |
|
Current |
<50uA |
|
Voltage |
DC6V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
4*AA Battery / AC |
|
Installation |
Backet / Screwed |
|
Dimensions |
116*77*40mm |
