Products

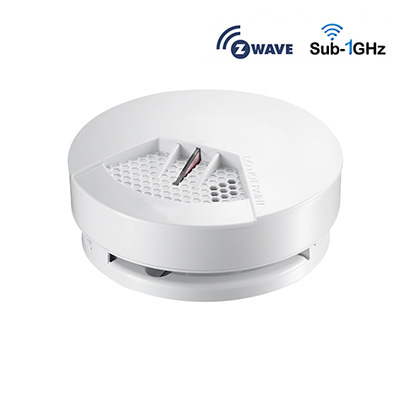

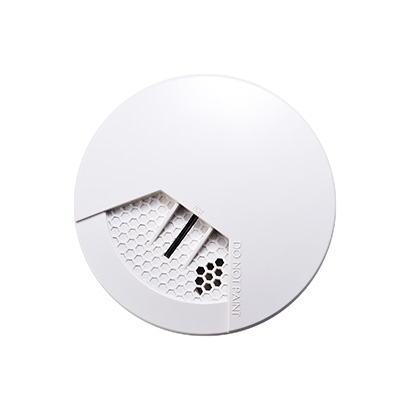

Smoke Detector
- Item No. : 6101
- Smoke Detector
- Protocol : Z-Wave(ZS6101-5) ; SUB-1G(HS6101)
(ZS6101-5) is designed to sense smoke that comes into the detector chamber and send Z-Wave signal when the detector detects a certain density of smoke then the horn of smoke detector will sound. When the device is secure included into Z-Wave network, above communication will be encrypted.
(HS6101) is a supervised, wireless, smoke detector for use with HS 512 / HS 514 Alarm systems. If the detector detects a certain density of smoke then the horn of smoke detector will sound and will send the signal to the control panel.
ZS610105 (Z-Wave)：
| * Photoelectron Smoke Detect |
| * Smoke Sensitivity: 1.31%/feet ~ 2.28%/feet@UL, 0.091dB/m ~ 0.149dB/m@EN |
| * Battery Detection |
| * LED Status Indicator |
| * Tamper Switch |
HS6101 (SUB-1G):
| * Photoelectron Smoke Detect |
| * Smoke Sensitivity: 1.31%/feet ~ 2.28%/feet@UL, 0.091dB/m ~0.149dB/m@EN |
| * Battery Detection |
| * LED Status Indicator |
| * Tamper Switch |
| * Battery Life: 1 Year at least |
ZS6101-5 (Z-Wave)：
|
Communication Protocol |
Z-WAVE |
|
Frequency |
US,EU |
|
Current |
<38uA |
|
Voltage |
DC3V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1*CR123A Battery |
|
Installation |
Backet |
|
Dimensions |
120*120*48.2mm |
SUB-1G:
|
Communication Protocol |
433MHz |
|
Frequency |
US,EU |
|
Current |
<38uA |
|
Voltage |
DC3V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Battery |
1*CR123A Battery |
|
Installation |
Backet |
|
Dimensions |
120*120*48.2mm |
