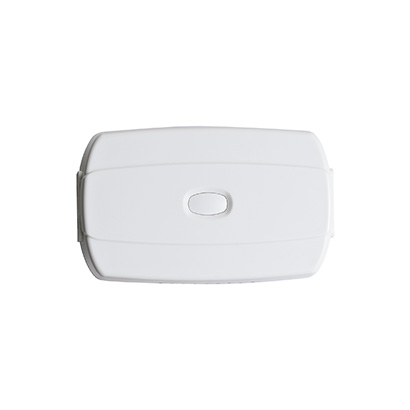

Plug-In Power Monitor
- Item No. : 7261 (US)
- Plug-In Power Monitor
- Protocol : Z-Wave(ZL7261US-5)
(ZL7261US-5) will send On/Off signal to the appliance that attached to this module by receiving Z-Wave TM signal from controller or manually switch. It also sends the energy consumption to the controller when it requests. With special design, this module won’t interfere the other power outlet when plug into the AC outlet. This module also acts as repeater (supporting FLiRS).
ZL7261US-5 (Z-Wave)
| * Plug Connection |
| * Auto Inclusion |
| * 3 Steps LED Indication: Green /Orange/ Red |
| * Max. Current: 15A |
| * Input Voltage: 90 ~ 230 VAC |
| * Power Monitor Range: Watt: 0.1W ~2200W@220VAC |
ZL7261US-5 (Z-Wave)
|
Communication protocol |
Z-WAVE |
|
Frequency |
US,CN,JP |
|
Power Supply |
90-230VAC |
|
Operating Range. |
Up to 100 feet line of sight |
|
Operating Temp. |
MIN:-10℃,MAX:+60℃ |
|
Max. Loading |
15Amp |
|
Power Monitor Range |
0.1W ~33W@220VAC |
|
Dimensions |
99x60x50mm |
