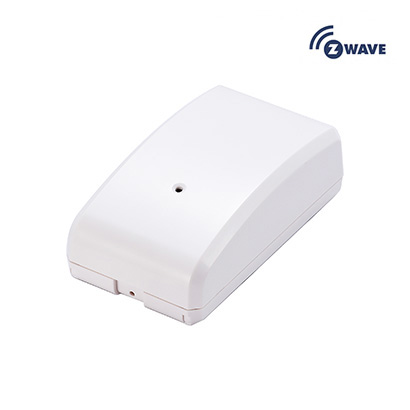

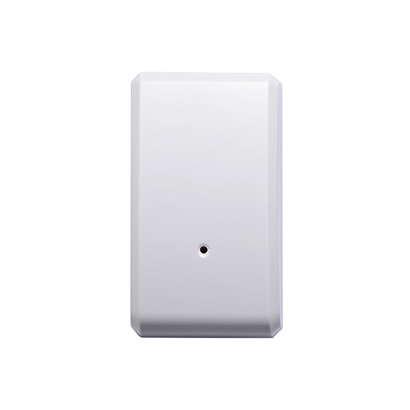

Shock Sensor
    • Shock Sensor
    • Shock Sensor
  • Item No. : 5101
  • Shock Sensor
  • Protocol : Z-Wave(ZS5101-5)
    (ZS5101-5) detects the vibrations made by an intruder trying to break a window or door, and also detect tamper situations, it will send Z-Wave signal when vibrations or tamper situations are detected. When the device is secure included into Z-Wave network, above the communication will be encrypted.

Z-Wave:

* Non-Touch Vibration Design for Longer Lifetime
* Adjustable Sensitivity
* Tamper Switch
* Battery Detection
* LED Status Indicator
* Battery Life: 2 Years

Communication Protocol

Z-WAVE

Frequency

EU,US

Current

 <4uA

Voltage

 DC3V

Operating Range.

 Over 30M

Operating Temp.

 MIN:-10℃,MAX:+60℃

Battery

 1*CR123A Battery

Installation

   Double Sided Foam Tape/Screwed

Dimensions

 74*42*28mm
