VISION-ELEC TECHNOLOGY CO., LTD.
Products

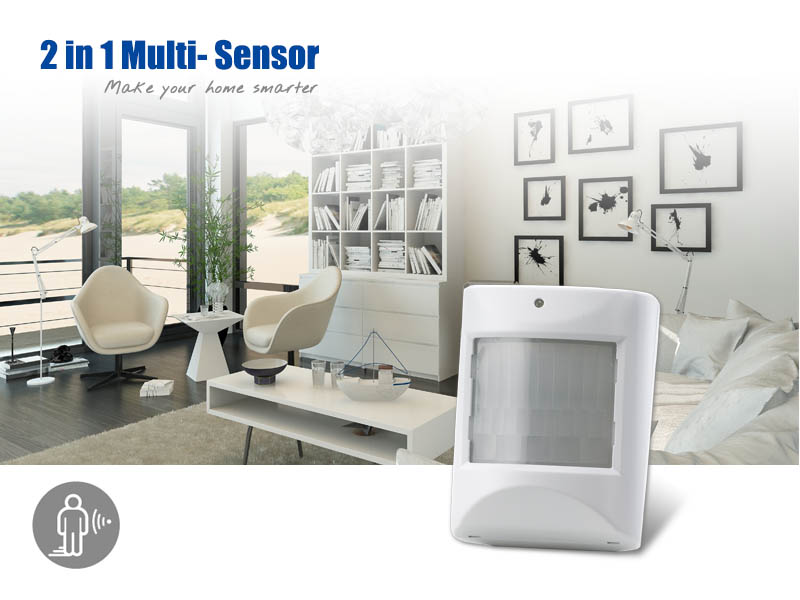

2 in 1 Multi- Sensor
- Item No. : 3102
- 2 in 1 Multi- Sensor
- Protocol : Z-Wave(ZP3102-5) ; SUB-1G(HP3102)
(ZP3102-5) monitors movement, and send Z-Wave TM signal when movement is detected inside the building. With Temperature sensor built inside, it will send the signal out when temperature changed. When the device is secure included into Z-Wave network, above communication will be encrypted.
*** Works with SmartThings ***
(HP3102) monitors movement, and send signal when movement is detected inside the building. System comes with pet mode build inside for optional function.
ZP3102-5 (Z-Wave):
| * Passive Infrared Sensor/ PIR |
| * Variable Installation |
| * 2-10 Meters Motion Range |
| * 120 Degree Horizontal |
| * Battery Detection |
| * LED Status Indicator |
| * Tamper Switch |
| * Battery Life: 3 Years |
HP3102 (SUB-1G)：
| * Passive Infrared Sensor/ PIR |
| * Variable Installation |
| * 2-10 Meters Motion Range |
| * 120 Degree Horizontal |
| * Battery Detection |
| * LED Status Indicator |
| * Tamper Switch |
| * Battery Life: approximately 3 Years |
ZP3102-5 (Z-Wave)：
|
Communication Protocol |
Z-WAVE |
|
Frequency |
EU,US,JP,KR,TW |
|
Current |
Static current:<25uA |
|
Voltage |
DC3V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+40℃ |
|
Battery |
1* CR123A |
| PIR Coverage |
120 degree |
| Installation |
Bracket |
|
Dimensions |
84*62*50mm |
HP3102 (SUB-1G)：
|
Communication Protocol |
433MHz |
|
Frequency |
EU,US,JP,KR,TW |
|
Current |
Static current:<25uA |
|
Voltage |
DC3V |
|
Operating Range. |
Over 30M |
|
Operating Temp. |
MIN:-10℃,MAX:+40℃ |
|
Battery |
1* CR123A |
| PIR Coverage |
120 degree |
| Installation |
Bracket |
|
Dimensions |
84*62*50mm |
